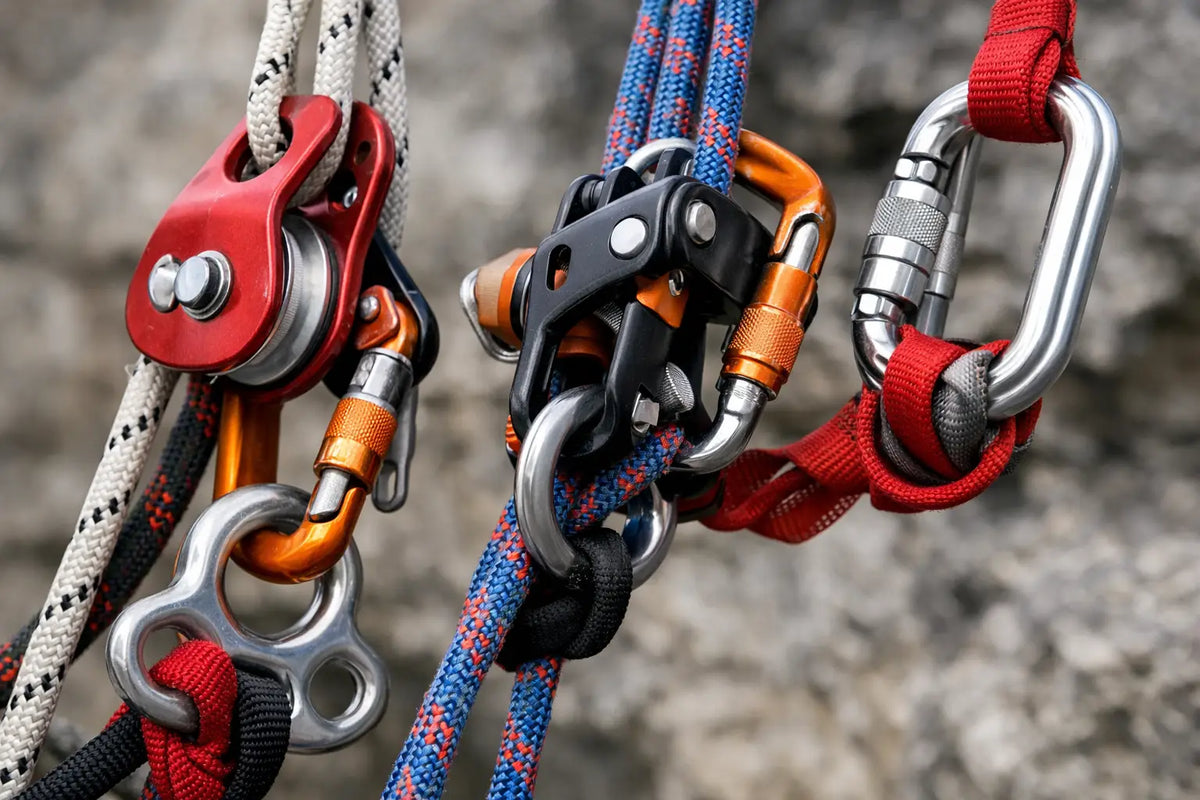

A rescue system is only as dependable as the smallest component carrying the load. Rope rescue hardware is not a collection of shiny metal parts clipped to a harness. It is the mechanical connection between rescuers, patients, anchors, rope, and the edge where a controlled operation can become an uncontrolled fall.
For tower crews, fire and emergency teams, industrial rescue personnel, arborists, and technical operators, selection has to start with the mission. A lowering system for a suspended worker is not the same as a confined-space retrieval setup. A high-angle litter evacuation is not the same as a pickoff rescue from a wind turbine. The hardware must support the intended system, the anticipated loads, the rope diameter, the available anchor geometry, and the people who may need to operate it under pressure.
Rope Rescue Hardware Must Be Chosen as a System
The most common purchasing mistake is evaluating carabiners, pulleys, descenders, and devices as individual products. Rescue hardware works in a system. A pulley that accepts a rope may still be wrong for the expected load, incompatible with the connector orientation, or unable to support the mechanical advantage required for the rescue plan.
Start with the rescue scenario and work backward. Define the casualty load, rescuer load, potential two-person load, anticipated edge friction, direction of pull, anchor locations, and whether the system will raise, lower, hold, belay, or transition between functions. Then build around the rope and the approved operating range of every device.
This approach matters because hardware ratings do not tell the whole story. A component can carry a high major-axis strength rating and still be compromised by cross-loading, gate loading, side loading, sharp-edge contact, poor pulley alignment, or an incompatible rope diameter. The rated strength belongs to the component in its tested configuration, not to every field setup someone can invent.
Rescue teams should also distinguish between equipment intended for personal fall protection and equipment designed for rescue rigging. Both may be essential, but they serve different jobs. A fall-arrest connector protects an individual during a fall event. A rescue pulley, brake rack, lowering device, or progress-capture device must perform predictably during controlled movement of a loaded system. Do not substitute convenience for a documented rescue capability.
The Hardware Categories That Control the Operation
Connectors: Small Parts With Large Consequences
Carabiners, screw links, captive-eye connectors, and anchor connectors establish the critical links in the system. Select connectors that provide adequate strength in the orientation they will actually see, not simply on a product label. A large opening may be necessary at an oversized anchor, while a captive connector may be the safer choice where rotation and cross-loading are likely.
Locking mechanisms must suit the working environment. Gloved hands, mud, ice, salt exposure, vibration, limited visibility, and repeated handling all affect real-world use. Automatic locking connectors can reduce the chance of an unsecured gate, but they still demand discipline. A locked gate does not correct a connector that is loaded across its minor axis or levered against an edge.
Hardware should also protect the rope from poor geometry. Avoid loading a rope directly over a narrow connector where a pulley or purpose-built ring is required. Tight bends increase friction and can reduce system efficiency when every pound of hauling force matters.
Pulleys and Progress Capture: Efficiency Is a Safety Margin
A hauling system must move a casualty without exhausting the team or shocking the load. Rescue pulleys reduce friction, improve directional control, and make mechanical advantage systems function as designed. In compact systems, integrated progress-capture pulleys can reduce component count and help limit setup errors, provided the device is used within its approved rope range and loading direction.
More mechanical advantage is not always better. A 9:1 system can create excessive force at anchors, increase rope travel demands, and complicate resets. A properly built 3:1 or 5:1 may be faster, easier to monitor, and more appropriate for the terrain. The correct question is not, “What system gives us the most power?” It is, “What system gives us controlled movement without overloading the anchor, rope, hardware, or team?”
Progress capture requires special attention during transitions. If a device is not designed to release under load, a team can create a stalled system when it needs movement most. Every rescue plan should account for tensioning, releasing, resetting, and transferring a load without relying on improvisation.
Lowering and Belay Devices: Control Cannot Be Optional
Lowering hardware must provide manageable friction, secure load holding, and predictable operation for the expected rescue load. Devices vary widely. Some are intended for single-person descent. Others are designed for rescue lowering, high-load use, or controlled release after lookoff. Using a personal descender outside its stated purpose can turn a rescue into a hardware failure event.
A separate belay is often the difference between a controlled error and a catastrophic one. When a main line is released, damaged, or mismanaged, the belay must engage at an appropriate force and protect the load path. Main and belay lines also need independent anchors whenever the scene allows. Two ropes connected to the same compromised anchor do not create meaningful redundancy.
For extended operations, consider heat management. Long lowers, heavy loads, and repeated cycles can generate heat at the device and damage rope or reduce operator control. The system may require a device built for higher heat capacity, a slower operational pace, or a different lowering strategy.
Edge Protection and Anchors: Protect the Load Path
The edge is where rope systems get punished. Concrete, steel, roofing, rock, turbine structures, and damaged industrial surfaces can abrade a rope quickly. Edge protection is not an accessory added after the rigging is complete. It is part of the rope path and must remain in place as the load moves.
Anchors deserve the same level of scrutiny. An anchor must be strong enough, positioned correctly, and evaluated for direction of pull. A structural member that appears substantial may not be rated or suitable for rescue loading. Where engineered anchors are unavailable, teams need trained personnel who can assess anchor configurations, distribute forces, and build redundancy without introducing new hazards.
Compatibility Is More Than a Diameter Range
Manufacturers publish rope-diameter ranges for good reason. A device may technically accept a rope outside its preferred range while delivering poor braking, unreliable cam engagement, accelerated wear, or difficult release under load. Rescue rope construction also matters. Diameter, sheath texture, stiffness, elongation, and contamination can change how a device performs.
Confirm compatibility among the rope, descender, pulley, rope grab, progress-capture device, and any edge-management equipment. Then test the complete configuration during training, under controlled conditions, before it is carried into an impossible situation. Field teams should not discover that a new rope runs too quickly through a lowering device during a live extraction.
The same discipline applies to harness interfaces. Rescue hardware transfers force into a harness, litter bridle, patient package, or attendant system. A poorly selected attachment point can alter body position, restrict access, or concentrate force where it should not. For prolonged suspension or controlled patient movement, support geometry and pressure distribution are operational safety issues, not comfort upgrades.
Inspection Must Happen Before and After the Call
Rescue gear is exposed to impacts, grit, chemicals, ultraviolet light, moisture, and unrecorded misuse. A component can look serviceable while carrying damage that changes its performance. Establish inspection procedures that match the organization’s use level, manufacturer instructions, and applicable safety requirements.
Before deployment, personnel should verify:
- connector gates close, lock, and seat correctly;
- pulleys rotate freely without excessive side play or damaged sheaves;
- cams, springs, and moving parts engage as intended;
- hardware has no cracks, sharp burrs, deformation, corrosion, or heat damage; and
- identification markings remain legible for traceability and retirement decisions.
After any significant load event, impact, uncontrolled descent, chemical exposure, or suspected misuse, remove the affected equipment from service until it can be evaluated by a competent person under the manufacturer’s guidance. Retirement decisions should never be based on whether the hardware is still needed for the next job.
Build a Rescue Cache Around Training, Not Hope
The best hardware cannot compensate for a team that has never practiced its deployment. Equipment caches should reflect the rescue plans crews are trained to execute pickoffs, suspended-worker recovery, confined-space retrieval, tower evacuation, industrial access, litter handling, or patient movement. Hardware should be organized so compatible components are easy to identify under stress, and critical items should be protected from contamination and impact during transport.
Next WheelHouse approaches life-critical equipment with the understanding that load-bearing design affects more than compliance. It affects whether a worker can be recovered without added injury, whether a rescuer can maintain control at the edge, and whether a patient remains supported with dignity during movement. That standard should guide every hardware decision.
When the call comes, no one needs more gear. They need the right components, correctly matched, inspected, and practiced until the system is familiar. Build that certainty before someone is hanging below the worksite.
